MTL Stoves Range List

ST1 VISION

Heat output: 5kW

Height: 495mm

Width: 440mm

Depth: 310mm

Approx weight: 46kg

Flue Size: 5" / 125mm

Internal Firebox Width: 335mm

Internal Firebox Depth: 200mm

Max Log Size: 11 inch (280mm)

Rear to centre of top flue: 147mm

Distance to Combustibles: 400mm to sides / 500mm to Rear

ST2

Heat output: 5kW
Height: 540mm
Width: 414mm
Depth: 350mm
Approx weight: 46kg
Flue Size: 5" / 125mm
Internal Firebox Width: 300mm
Internal Firebox Depth: 250mm
Max Log Size: 10 inch (255mm)
Rear to centre of top flue: 124mm

Distance to Combustibles: 450mm to sides / 500mm to Rear

ST3

Heat output: 7.3kW
Height: 510mm
Width: 520mm
Depth: 325mm
Approx weight: 67kg
Flue Size: 5" / 125mm

Distance to combustibles: 475mm to rear/ 400mm to sides

ST4

Heat output: 7.5kW

Height: 542mm

Width: 495mm

Depth: 360mm

Approx weight: 70kg

Flue Size: 5" / 125mm

-------------------

Internal Firebox Width: 380mm
Internal Firebox Depth: 250mm
Max Log Size: 14" (350mm)
Rear to centre of top flue: 124mm

Distance to Combustibles: 500mm to sides / 500mm to Rear

ST-X4

Heat output: 4.1kW

Height: 489mm standard version / 689mm Tall version

Width: 395mm

Depth: 330mm

Approx weight: 70kg / 90kg Tall version

Flue Size: 5" (125mm)

Internal Firebox Width: 285mm
Internal Firebox Depth: 225mm
Max Log Size: 10" (255mm)
Rear to centre of top flue: 118mm
Floor to centre of rear flue: 390mm

Distance to Combustibles: 400mm to sides 500mm to Rear

ST-X5

Heat output: 5 kW

Height: 615mm / 835mm Tall version

Width: 460mm

Depth: 370mm

Approx weight: 90kg / 110kg Tall version

Flue Size: 5" (125mm)

Internal Firebox Width: 340mm

Internal Firebox Depth: 255mm

Max Log Size: 12" (255mm)

Rear to centre of top flue: 120mm

Floor to centre of rear flue: 510mm

------------

Distance to Combustibles: 600mm to side walls / 700mm to Rear wall

ST-X8

Heat output: 8 kW

Height: 664mm / 853mm Tall version

Width: 515mm

Depth: 416mm

Approx weight: 120 kg

Flue Size: 5" (125mm)

Internal Firebox Width: 390mm
Internal Firebox Depth: 290mm
Max Log Size: 14" (360mm)
Rear to centre of top flue: 120mm
Floor to centre of rear flue: 560mm

Distance to Combustibles: 700mm to side walls / 800mm to Rear wall

ST-X Wide

Heat output: 5 kW

Height: 600mm / 824mm Tall version

Width: 592mm

Depth: 285mm

Approx weight: 90kg / 120kg Tall version

Flue Size: 5" (125mm)

Internal Firebox Width: 455mm
Internal Firebox Depth: 195mm
Max Log Size:  17" (430mm)
Rear to centre of top flue: 135mm
Floor to centre of rear flue: 467mm

Distance to Combustibles: 400mm to side walls / 250mm to rear wall

Saltfire Scout

Heat output: 4.3kW

Height: 485mm / 650mm Tall version

Width: 379mm

Depth: 293mm

Approx weight: 50kg / 65kg Tall version

Flue Size: 5" / 125mm

Max Log Size: 10" (270mm)

Rear, to centre of top flue: 127mm

Distance to Combustibles: 500mm to side walls / 100mm to rear wall

Saltfire Classic

Heat output: 5kW

Height: 562mm

Width: 454mm

Depth: 317mm

Approx weight: 60kg

Flue Size: 5" / 125mm

Max Log Size: 13" (330mm)

Distance to Combustibles: 600mm to side walls / 800mm  to rear wall

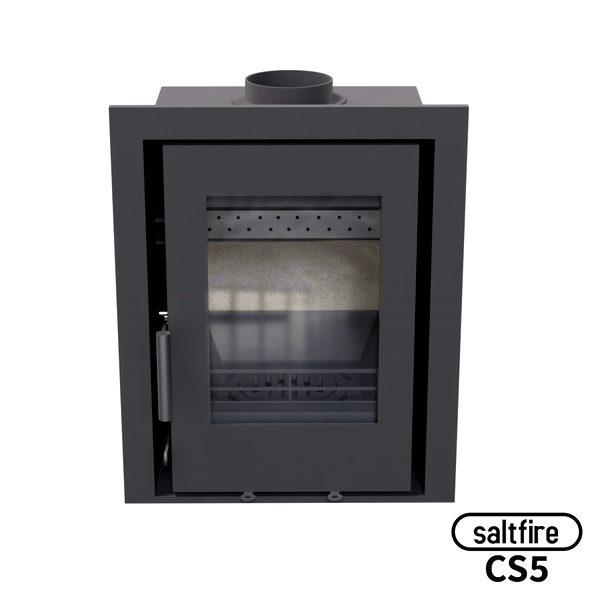

Saltfire C5

Heat output: 5 kW

Height: 542mm

Width: 400mm

Depth: 330mm

Approx weight: 60 kg

Flue Size: 5" (125mm)

-----------

Internal Firebox Width: 280mm
Internal Firebox Depth: 240mm
Max Log Size: 8" (220mm)
Rear to centre of top flue: 102mm
